It is known that the power consumption of the Raspberry Pi 3 Model B+ and the Raspberry Pi 4 Model B can be problematic. This is especially the case if you are using a “wireless-internet to wireless-clients” connection, which involves the wireless chip on the board and an additional USB WiFi adapter. As a rule, simpler, low-powered USB WiFi adapters lead to fewer problems, meaning that this kind of USB WiFi adapters usually supports only 2,4 GHz and not 5 GHz networks. Since TorBox version 0.2.5, the Internet can also be accessed via the onboard WiFi chip so that 5 GHz networks can be tapped. However, since the USB WiFi adapter might be missing on reboot, and a user might be locked out, TorBox will reset itself after a reboot so that the onboard WiFi chip will again act as an access point and can be accessed with a SSH client. Tthere are good reasons to use a USB WiFi adapter that can access 5 GHz networks even after a reboot.
In this article, we want to investigate whether using 5 GHz USB WiFi adapters makes sense in terms of power consumption and what problems might be associated with it. We want to focus especially on the nano-sized adapters because they usually have a lower power consumption. Nevertheless, as an alternative, we tested a modern adapter, which is relatively large and has two antennas. The tests are performed exclusively on a Raspberry Pi 4 Model B because firmware updates in late autumn 2019 reduced its overall power consumption. Therefore, we assume that the Raspberry Pi 4 is in a better position than the Raspberry Pi 3 Model B+, which to our knowledge, has not experienced any such improvement. The following adapters were (by chance) available for the test (more adapters may be tested on request – let me know):
- Netgear AC1200, nano-sized USB 2.0 adapter, which supports 802.11 b/g/n (2,4 GHz) and 802.11 a/n/ac (5 GHz)
- TP-Link Archer T2U Nano AC600, nano-sized USB 2.0 adapter, which supports 802.11 b/g/n (2,4 GHz) and 802.11 a/n/ac (5 GHz)
- TP-Link AC1300, USB 3.0 adapter, which supports 802.11 b/g/n (2,4 GHz) and 802.11 a/n/ac (5 GHz), with two antennas and multi-user MIMO technology

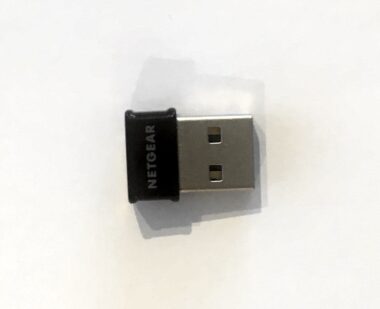

The Netgear AC1200
The Netgear AC1200is not supported “out of the box” by Raspberry Pi. It needs to have installed a driver for Realtek RTL8812BU. Fortunately, Fars Robotics provides such a driver for a variety of kernel versions.
To install the right driver, first, the version of the used Linux kernel has to be identified with the command
uname -a. With the kernel version known (for example,
5.4.51-v71+ #1327), the correct driver package can be found here: http://downloads.fars-robotics.net/wifi-drivers/8822bu-drivers/. In our example, the driver package name is
8822bu-5.4.51-v71-1327.tar.gz. The next step is to download and install the driver before the first use of the Netgear AC1200:
# The * has to be replaced by the correct kernel version cd ~ wget http://downloads.fars-robotics.net/wifi-drivers/8822bu-drivers/8822bu-*.tar.gz tar xzf 8822bu-*.tar.gz ./install.sh
After the driver’s installation and a reboot, the Netgear AC 12000 adapter is discovered by the Raspberry Pi and ready to use. In the TorBox main menu using entry 5, we get into the network manager (wicd) and see now all available 2,4 GHz and 5 GHz networks. (Remark: since TorBox v.0.4.0, the more stable TorBox Network Manager has replaced wicd). When we connect with one of these networks, the adapter needs an unusually long time to authenticate itself with the chosen wireless network, but it worked reliably every time. In contrast, during the tests, we would have to reset wicd again and again because it crashed during configuration. Besides, the adapter in our tests lost the connection to the Internet after a few hours. In the time available, we could not determine whether this behaviour was caused by too much power consumption, too much heat accumulation at the USB interface or the adapter, or whether the driver software was causing problems (rather unlikely). However, we noticed that the USB interface of the Raspberry Pi and the adapter heat a lot during operation, so we think it is primarily a thermal problem. These observations were made when using 2.4 GHz and 5 GHz networks as well as mains and battery operation. Despite this inconvenience, the adapter worked both at 2.4 GHz and 5 GHz networks. However, you can forget about any speed advantages. In our case, the network performance on the 5 GHz network was not higher than a simple 2,4 GHz USB WiFi adapters.

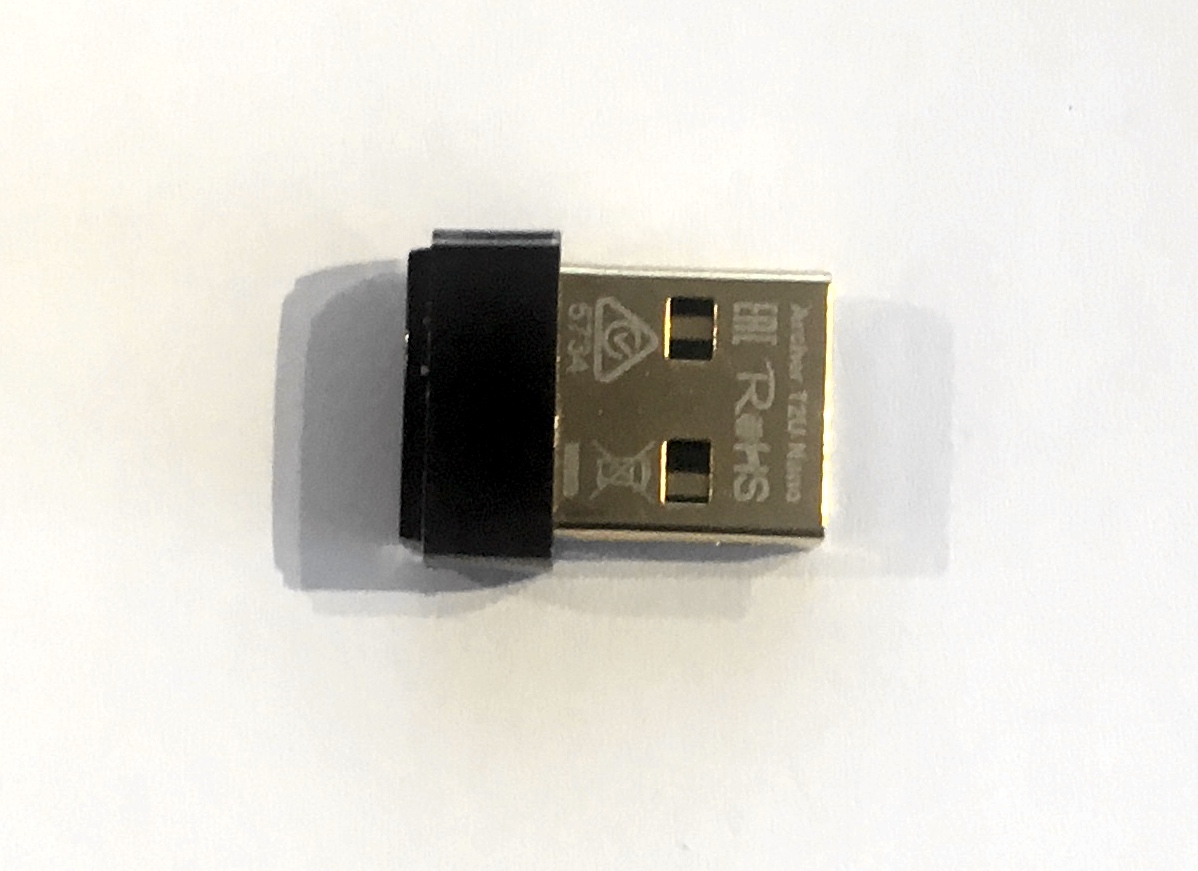

The TP-Link Archer T2U Nano AC600
The TP-Link Archer T2U Nano AC600 does not work “out of the box” either – it needs a driver for the Realtek RTL8812au.
Although Fars Robotics provides such a driver, currently, it is only available for the Linux kernel version 4.19.19 or older. (Remark: in the meantime, Fars Robotics has updated its driver, and you can install it the same way as described above. However, since TorBox v.0.4.0, these network drivers are already installed) In other words: with that adapter, we have to find another way to get it working. Fortunately, the project Aircrack-NG provides us with a solution:
# This should work with the latest kernel used by the Raspberry Pi OS, but probably not with older ones if the kernel headers are missing cd ~ sudo apt-get -y install git dkms raspberrypi-kernel-headers git clone https://github.com/aircrack-ng/rtl8812au.git cd rtl8812au sudo ./dkms-install.sh
After successfully installing the driver and a reboot, the TP-Link Archer T2U Nano AC600 adapter is discovered by the Raspberry Pi and ready to use. Like the Netgear AC1200, the TP-Link Archer T2U Nano AC600 takes an unusually long time to authenticate itself with a chosen wireless network. However, in contrast to the Netgear AC1200, there were no wicd crashes. The TP-Link Archer T2U Nano AC600 showed stable operation during the tests – at 2.4 GHz and 5 GHz; in mains and battery operation. The adapter did not lose the connection to the network even during hours of operation. However, the heat development on the USB interface and the adapter was roughly comparable to the Netgear AC1200. Again, no higher network performance could be found compared to simple 2,4 GHz USB WiFi adapters.

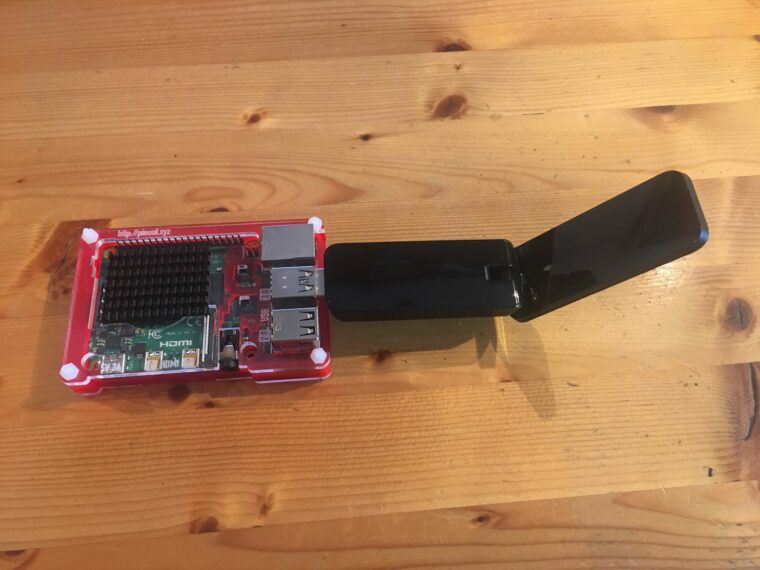

The TP-Link Archer T4U AC1300
The TP-Link Archer T4U AC1300 is — compared with the other two nano-sized adapters — gigantic. Using two antennas and supporting the multi-user MIMO technology, we had no great hope that the adapter would run stable in our tests. Needless to say that the TP-Link Archer T4U AC1300 did not run out of the box. However, it uses the same driver as the Netgear AC1200 (Realtek RTL8812BU), which can be installed in the same way as already described above. After installing the driver, our surprise was big. Even though the wireless network’s authentication process took again an unusually long time and wicd had to be reset frequently, the TP-Link Archer T4U AC1300 showed higher stability than the Netgear AC1200. The adapter showed stable operation during the tests – at 2.4 GHz and 5 GHz; in mains and battery operation, and it did not lose the connection to the network even during hours of operation. Interestingly, connected with a 5GHz network, the TP-Link Archer T4U AC1300 shows a significantly higher network performance. Random influxes cannot be excluded, but when downloading the LibreOffice package, constant data rates could be detected, which were at least twice as high as with the other two adapters or with simple 2,4 GHz USB WiFi adapters. Possibly the two available antennas with the multi-user MIMO technology come into play here. Also interesting is that the adapter warms up itself and the USB interface only slightly. This is probably due to the significantly larger surface of the adapter and the ventilation holes.
We stick to the general statement that simple, low-powered USB WiFi adapters lead to fewer problems. This is not only true for power supply, if not used the official power supply for the Raspberry Pi, but especially when searching and installing the necessary network drivers. However, the test also showed that the firmware updates in late autumn 2019 obviously solved many of the electrical supply problems that made the use of more complex USB WiFi adapters virtually impossible. In this sense, the good test results of the TP-Link Archer T4U AC1300 surprised us positively. The purchase of this adapter could be worthwhile not only concerning the availability of the 5 GHz networks but especially also regarding higher throughput due to the multi-user MIMO technology. The TP-Link Archer T2U AC600 also ran very reliably and impressed with its stability. Although it opens up the world of 5 GHz networks, higher throughput rates are not to be expected with this adapter. In contrast, the Netgear AC1200 left somewhat mixed feelings. It also allows docking to 5 GHz networks without providing higher throughput rates. However, in daily use, this adapter makes a much less stable impression. Regularly after a few hours, it loses its connection to the network, which in our opinion, is not acceptable. Probably the biggest problem of all these more complex adapters is that they are not supported out of the box by the Raspberry Pi OS.
